Separator - Pin Over Bar
Fast and repeatable separation of thermoformed aligners — without separating threads.
The Separator – Pin Over Bar enables controlled separation of thermoformed aligners using a mechanical pin-and-bar principle.
By eliminating separating threads, the process becomes simpler, more consistent and free of recurring consumable costs.
No Separating Threads
Eliminates the need for disposable separating threads.
Repeatable Separation
Defined pin-and-bar guidance ensures consistent results.
No Consumable Costs
No follow-up costs for separating threads.
Flexible Operation
Uses standard adapters for widely used thermoforming units.
Product Overview

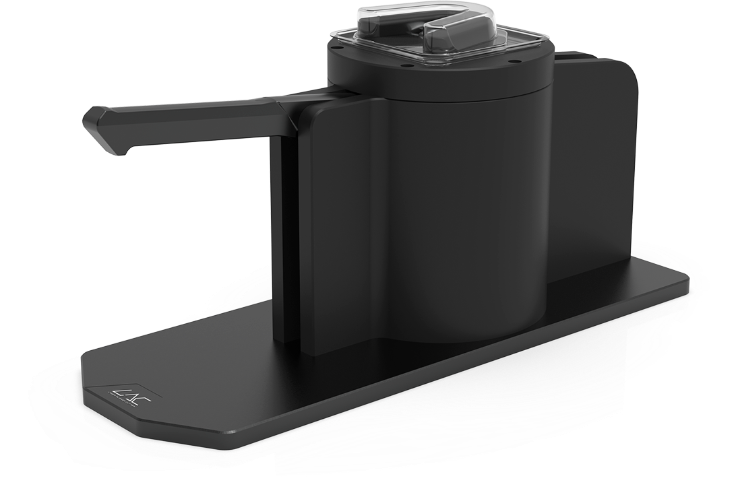

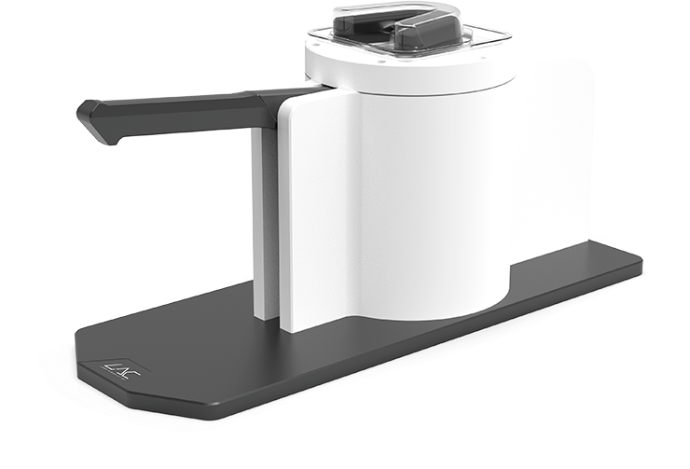

The Separator – Pin Over Bar separates the thermoformed model from the aligner foil using a mechanical hook that engages a bar integrated into the printed model.
Unlike conventional separation methods, no separating threads are required.
This simplifies handling and eliminates recurring consumable costs.
Standard adapters are available for common thermoforming devices, including Scheu Ministar™, Scheu Biostar™, Erkodent Erkofrom™, Erkodent Erkpress Motion™ and Dreve Dentamid Drufomat Scan.
The adapter and vacuum plate are combined into a single component for the respective thermoforming unit.
Feature Highlights
Threadless Separation
- No separating threads required
- Eliminates recurring consumable costs
- Simplifies the separation process
Defined Separation Geometry
- Mechanically guided separation path
- Defined interaction between pin and model bar
- Consistent, repeatable separation results
Adapter-Based Compatibility
- Standard adapters for common thermoforming devices
- Combined adapter and vacuum plate per device
- Easy integration into existing setups
Reliable Daily Operation
- Robust mechanical design
- Designed for repeated use in lab environments
- Minimal maintenance required
How it works
Mechanical separation using the Pin-over-Bar principle for fast and repeatable results.
01

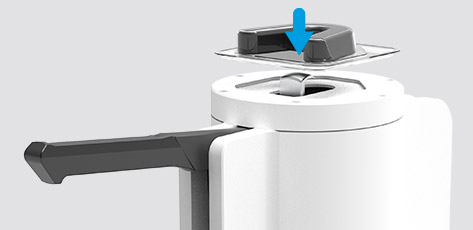

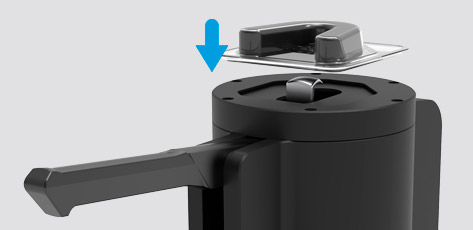

Place the thermoformed model on the cover plate and lift the aligner foil to position the hook over the printed bar.
02

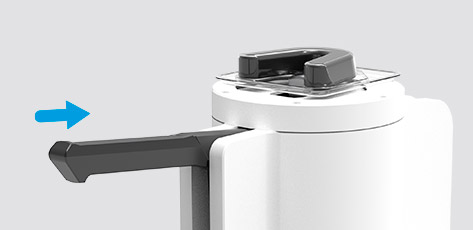

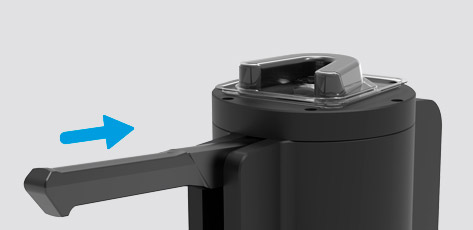

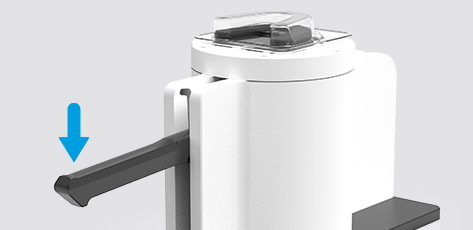

Move the lever towards the stop on the separator body to engage the mechanical separation process.
03

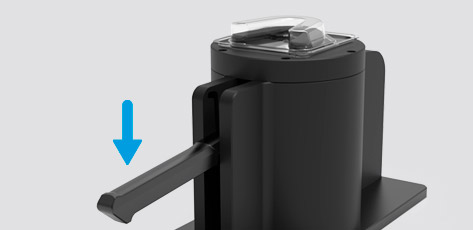

Continue pressing the lever until the model is fully released from the aligner foil and ready for further processing.
Adapters for Separator - Pin Over Bar
dapters are available in different sizes depending on the thermoforming unit and manufacturer. Please select the appropriate adapter for your device.
Erkodent Erkoform ™

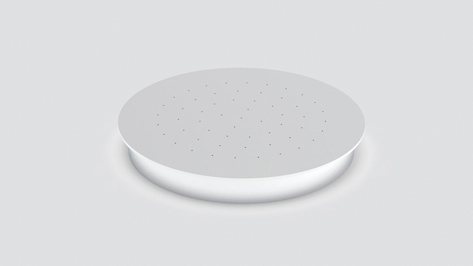

#106385

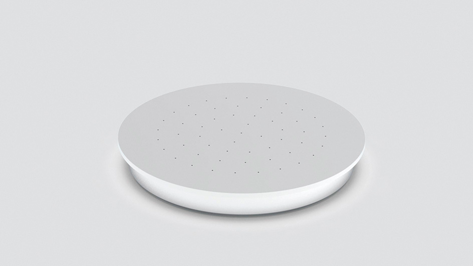

Erkodent Erkopress Motion ™
#106384
Set - Scheu Ministar ™

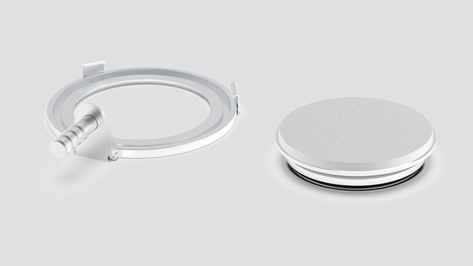

#1066387
Set - Scheu Biostar ™

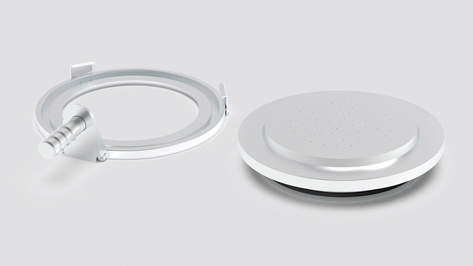

#106388

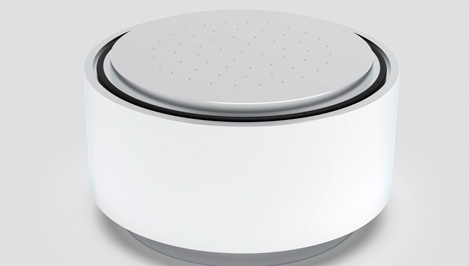

Dreve Dentamid Drufomat Scan
#106389
If you do not find a suitable adapter for your device, please contact us for assistance.
Where Pin Over Bar Fits Best
The Separator – Pin Over Bar is ideal for production environments seeking faster and more repeatable aligner separation without the use of separating threads.
For workflows that require maximum flexibility or fully manual operation, the Separator – Standard may be the better choice.
Technical Specifications
Key technical parameters for system integration and operation.
Key Technical Parameters
ALIGNER SEPARATION
Process time (per aligner separation)
Aligner foil diameter
Aligner foil height
approx. 20–35 s
Ø120–125 mm
0.25–1.0 mm
GENERAL
W / L / H
Weight
145 × 385 × 215 mm
4 kg
Frequently Asked Questions
Clear answers to common questions about separator operation, compatibility and daily use.
No.
The Separator – Pin Over Bar is a mechanically guided device.
While it does not require separating threads, the separation process itself is manually operated using a defined pin-and-bar mechanism.
The Separator – Standard uses controlled vacuum and separating threads and is designed for flexible, manual workflows.
The Separator – Pin Over Bar separates aligners without separating threads, using a mechanical hook engaging a bar integrated into the model — enabling faster and more repeatable separation.
The Separator – Pin Over Bar supports common thermoforming devices via dedicated adapters.
Standard adapters are available for manufacturers such as Scheu, Erkodent and Dreve.
No.
The Separator – Pin Over Bar does not require compressed air and operates purely mechanically.
When used as intended and with suitable model material, the separation process is non-destructive and designed to protect both the aligner and the model.
No.
The Pin Over Bar principle eliminates the need for separating threads, reducing consumable usage and follow-up costs.
Yes.
The device is designed for reliable daily operation in dental lab environments and supports repeated separation cycles.
Looking to integrate a separator into your workflow?
Whether you are setting up a new aligner production process or optimizing an existing workflow, our team is happy to support you with separator selection, compatibility checks and configuration advice.
Our team will respond personally and help you find the right configuration.
